Capex 70mm Concealed Fix with Rag 55 – 2.4M – Brown

£59.04

Please note this is a pre-order item. Lead time 7-10 days.

SKU: RB-CP70B24 Category: Tag:

Description

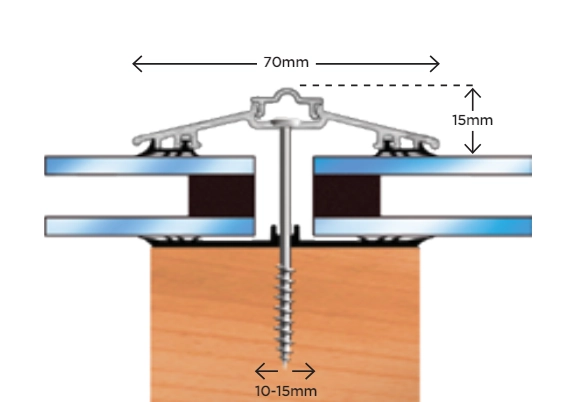

Capex 70mm Concealed Fix with Rag 55 – 2.4M – Brown

  • Concealed Fixings for high quality finish
  • Ideal for capping single, double or triple glazed glass, acrylic and polycarbonate structures
  • Adjoining panels on the same plane or pitch to 5 degrees up or down
  • High quality supple EPDM gasket with cord
  • Suitable for conservatories, sky light roofing, glazed walk ways, shopping centres, swimming pools, railway and bus stations, etc…

Fitting Instructions:

  • Remove rubber seals from aluminium
  • Cut aluminium to required length with a hacksaw
  • Cut rubber seals to the same length as aluminium and reinsert in grooves
  • Position the capping profile on the glazing material and screw into rafter
  • Fix end cap in position and dip screw cover in position

Can be installed wet or dry

Additional information

Dimensions 240 × 7 cm
Colour

Grey, Brown, White, Mill Finish
