Description

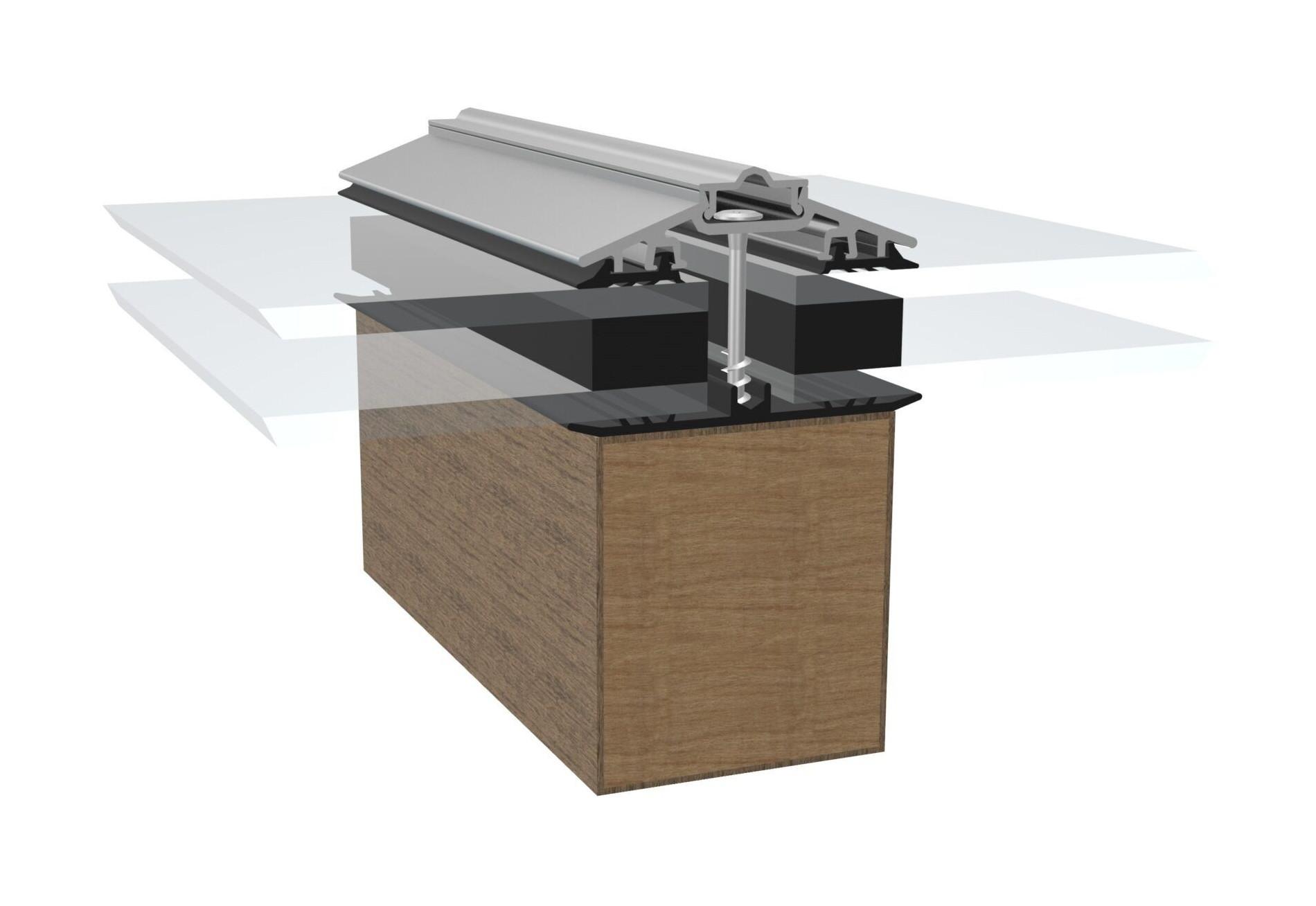

Capex 50mm Concealed Fix with Rag 45 – 3M
- Concealed Fixings for high quality finish
- Ideal for capping single, double or triple glazed glass, acrylic and polycarbonate structures
- Adjoining panels on the same plane or pitch to 5 degrees up or down
- High quality supple EPDM gasket with cord
- Suitable for conservatories, sky light roofing, glazed walk ways, shopping centres, swimming pools, railway and bus stations, etc…
Fitting Instructions:
- Remove rubber seals from aluminium
- Cut aluminium to required length with a hacksaw
- Cut rubber seals to the same length as aluminium and reinsert in grooves

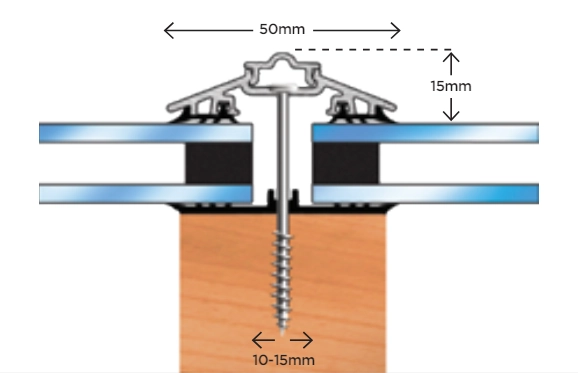

- Position the capping profile on the glazing material and screw into rafter
- Fix end cap in position and dip screw cover in position
Can be installed wet or dry
